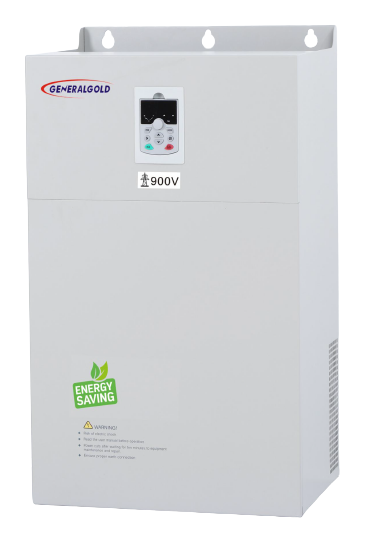

GeneralGold Solar Pump Inverter 110Kw 3 Phases
GeneralGold Solar Pump Inverter 110Kw 3 Phases
Main Feature
Product or component type: Solar pump inverter
Inverter power Kw: 110 kW at 380...480 V 3 phases
Inverter power HP: 150 HP at 380...480 V 3 phases
Match pumps power: 110 KW/150HP pump (pump distance to inverter less than 70 meters)
Match pumps power: 90 KW/125HP pump (pump distance to inverter more than 70 meters)
MPPT efficiency ≥99%
Power supply voltage: DC350V-900/AC 380...480 V
Recommended input MPPT voltage: 530V
Max input DC voltage: 900 V (in order to get longer life time of inverter, better no more than 850V)
Out put voltage: AC AC 380V-480V
Network number of phases single: 3 phases
Input current: < 420A
Nominal output current: 210A
Solar panels configuration: Power can be 1.2-1.5 times than pump related power, total VMP more than 305V,total VOC less than 850V
EMC C3 filter: Integrated
Assembly style: With heat sink
Speed drive output frequency: 0.1...500 Hz
Ambient temperature range -10 °C~55 °C, derating if the temperature is above 40 °C
Protection degree: IP20
Weight (KG): 53
Product Dimension (mm): 620*390*300
