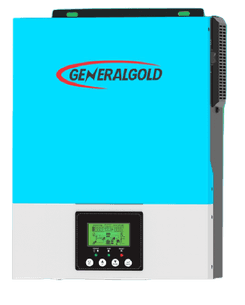

GeneralGold Solar Hybrid Inverter 2400W
GeneralGold Solar Hybrid Inverter 2400W
Regular price
$275.00
Regular price
$375.00
Sale price
$275.00
Unit price
per
Couldn't load pickup availability
Hybrid Solar Inverter
Model: SM-2400-24
Rated Power : 3000VA/2400W
INPUT
Voltage: 230V
Frequency Range: 50/60Hz (Auto sensing)
OUTPUT
AC Voltage regulation: 230VAC
Surge power: 4800VA
Efficiency (Peak) PV to INV: 97%
Efficiency (Peak) BAT to INV: 94%
Wave Form: Pure Sine Wave
Battery & AC Charger
Battery voltage: 24 VDC
Floating Charging Voltage: 27VDC
Overcharge Protection: 33DC
Maximum charge current: 60A
Solar Charger
MAX. PV array power: 3000W
MPPT Range/ Operating Voltage: 90-430 VDC
Maximum PV array open circuit voltage: 450 VDC
Maximum charging current: 80A
Maximum efficiency: 98%
Dimensions, D*W*H (mm): 348*270*95
Net Weight (kgs): 5Kg
Operating temperature: 0 to 55 degree Celsius
Model: SM-2400-24
Rated Power : 3000VA/2400W
INPUT
Voltage: 230V
Frequency Range: 50/60Hz (Auto sensing)
OUTPUT
AC Voltage regulation: 230VAC
Surge power: 4800VA
Efficiency (Peak) PV to INV: 97%
Efficiency (Peak) BAT to INV: 94%
Wave Form: Pure Sine Wave
Battery & AC Charger
Battery voltage: 24 VDC
Floating Charging Voltage: 27VDC
Overcharge Protection: 33DC
Maximum charge current: 60A
Solar Charger
MAX. PV array power: 3000W
MPPT Range/ Operating Voltage: 90-430 VDC
Maximum PV array open circuit voltage: 450 VDC
Maximum charging current: 80A
Maximum efficiency: 98%
Dimensions, D*W*H (mm): 348*270*95
Net Weight (kgs): 5Kg
Operating temperature: 0 to 55 degree Celsius
