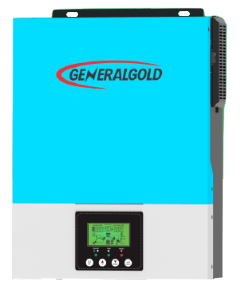

GeneralGold Solar Hybrid Inverter 1500W

Hybrid Solar Inverter
Model: SM-1500-12
Rated Power : 1500VA/1500W

INPUT
Voltage: 230V
Frequency Range: 50/60Hz (Auto sensing)

OUTPUT
AC Voltage regulation: 230VAC
Surge power: 3000VA
Efficiency (Peak) PV to INV: 97%
Efficiency (Peak) BAT to INV: 94%
Wave Form: Pure Sine Wave

Battery & AC Charger
Battery voltage: 12 VDC
Floating Charging Voltage: 13.5VDC
Overcharge Protection: 16VDC
Maximum charge current: 60A

Solar Charger
MAX. PV array power: 2000W
MPPT Range/ Operating Voltage: 90-430 VDC
Maximum PV array open circuit voltage: 450 VDC
Maximum charging current: 80A
Maximum efficiency: 98%
Dimensions, D*W*H (mm): 348*270*95
Net Weight (kgs): 4Kg
Operating temperature: 0 to 55 degree Celsius
