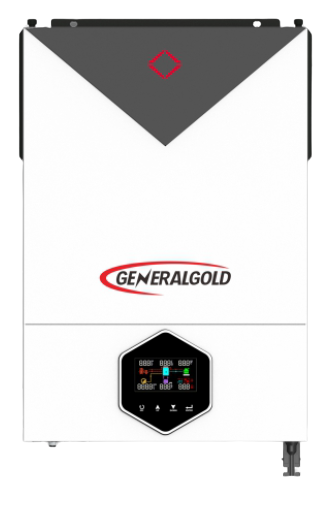

GeneralGold Hybrid Solar On/Off Grid Inverter 6200W
GeneralGold Hybrid Solar On/Off Grid Inverter 6200W
MODEL: MPS-VIII 6200W
With WIFI Dangle
Phase: 1-Phase
Maximum PV Input Power: 6500W
Rated Output Power: 6200W
Maximum Solar Charging: 120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
MPPT Voltage Range: 90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current: 1/27A
GRID OUTPUT(AC):
Nominal Output Current: 200/230/240VAC
Output Voltage Range: 195.5~253VAC
Nominal Output Voltage: 26.1A
Power Factor: >0.99
Feed-in Grid Frequency Range: 49~51±1Hz
EFFICIENCY:
Maximum Conversion Efficiency(DC/AC): 97%
TWO LOAD OUTPUT POWER(V2.0)
Full Load: 6200W
Maximum Main Load: 6200W
Maximum Second Load(Battery mode): 2067W
Main Load Cut Off Voltage: 44VDC
Main Load Return Voltage: 48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage: 120-140VAC / 180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 40A
Nominal Operating Frequency: 50/60Hz
Surge Power: 12400VA
PV INPUT(DC):
Maximum DC Voltage: 500VDC
MPPT Voltage Range: 90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current: 1/27A
BATTERY MODE OUTPUT(AC):
Nominal Output Voltage: 48VDC
Output Waveform: Pure sinewave
Efficiency(DC to AC): 94%
BATTERY & CHARGER:
Nominal DC Voltage: 48VDC
Maximum Solar Charging Current: 120A
Maximum AC Charging Current: 100A
Maximum Battery Current: 150A
GENERAL
PHYSICAL
Dimension D*W*H: 420*310*110
Net Weight: 11Kg
INTERACE
Communication Port: RS232/WIFI/BMS
ENVIRONMENT
Humidity: 0~90%
Operating Temperature: -10°C to 50°C
