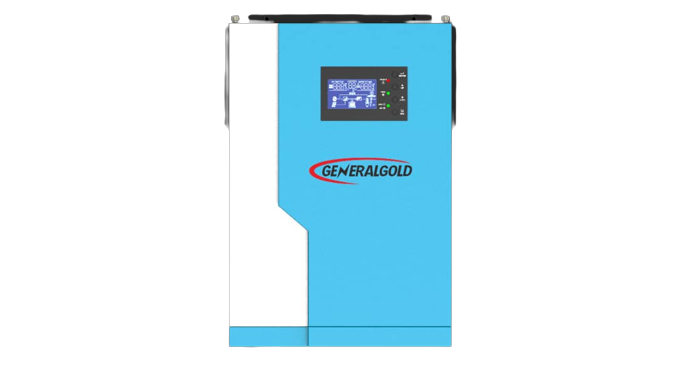

GeneralGold Hybrid Solar Inverter 5500W Plus Series

Hybrid Solar Inverter

Model: MPS-V 5500W- PLUS

Rated Power : 5500VA/5500W

Frequency Range: 50/60Hz (Auto sensing)

Surge power: 11000VA

Battery voltage: 48 VDC

Maximum charge current: 80A

MAX. PV array power: 6000W

MPPT Range/ Operating Voltage: 120-450 VDC

Maximum PV array open circuit voltage: 500 VDC

Maximum charging current: 100A

Dimensions, D*W*H (mm): 440*300*100

Net Weight (kgs): 11Kg

Operating temperature: 0 to 55
