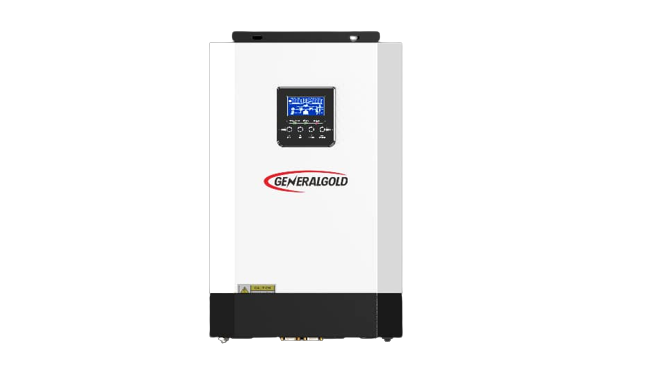

GeneralGold Hybrid Solar Inverter 5500W H Series

Model: MPS-5500H

With EXTRA LCD and 10-meter network cable

Rated Power: 5500VA/5500W
Input Voltage: 230 VAC
Input Frequency range: 50/60 Hz

OUTPUT:
Surge Power: 11000VA
Wave Form: Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 61VDC
Maximum charge Current: 80A

SOLAR CHARGER:
MAX. PV Array: 6000W
MPPT Range Operating Voltage: 120-500VDC
Maximum PV Array Open Circuit Voltage: 500VDC
Maximum Charging Current: 110A
Maximum Efficiency: 98%

Dimensions D*W*H:  472*297*129

Net Weight: 10.5Kg

Operating Temperature: 0 to 55 degree Celsius
