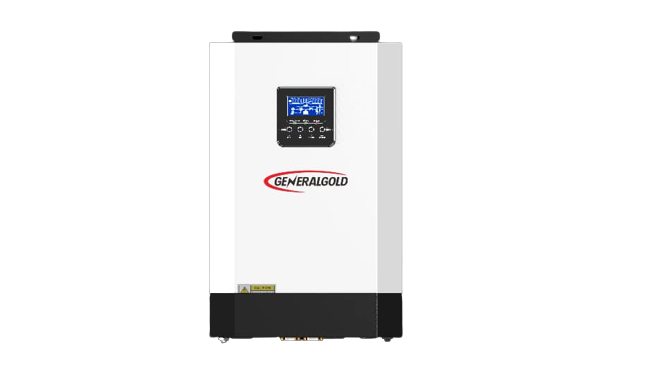

GeneralGold Hybrid Solar Inverter 3500W H Series

GeneralGold Hybrid Solar Inverter 3500W H Series

Regular price $450.00
Regular price $550.00 Sale price $450.00
Sale Sold out

Model: MPS-3500H

With WIFI Dangle

Rated Power: 3500VA/3500W
Input Voltage: 230 VAC
Input Frequency range: 50/60 Hz

OUTPUT:
Surge Power: 7000VA
Wave Form: Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage: 24VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 31VDC
Maximum charge Current: 80A

SOLAR CHARGER:
MAX. PV Array: 5000W
MPPT Range Operating Voltage: 120-500VDC
Maximum PV Array Open Circuit Voltage: 500VDC
Maximum Charging Current: 110A
Maximum Efficiency: 98%

Dimensions D*W*H:  472*297*129

Net Weight: 9.5Kg

Operating Temperature: 0 to 55 degree Celsius
