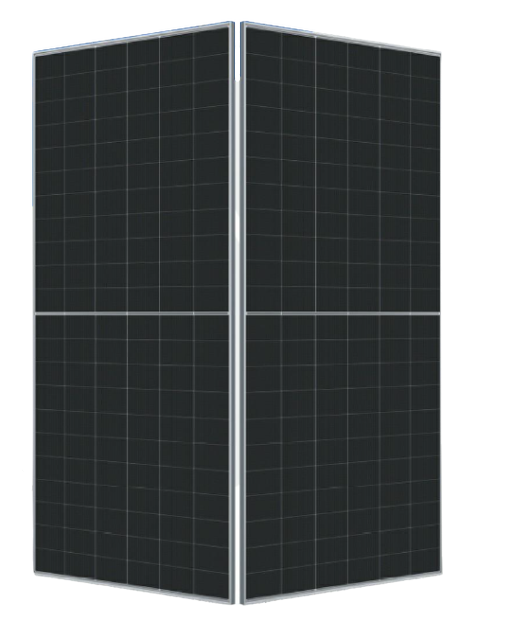

GeneralGold 665W Bifacial Solar Panel N-Series

Key Salient Features:
1. Global, Tier 1 bankable brand
2. 20 Bus Bar per Cell
3. Highest Efficiency World Wide 22.2%
4. Bifacial technology enables additional energy harvesting from the rear side (up to 30%)
5. Excellent low irradiance performance
6. Excellent PID resistance
67. Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

Electrical Data (STC):
Rated Power in Watts: 665
Open Circuit Voltage (VOC): 46.98V
Short Circuit Current- Isc: 17.84A
Maximum Power Voltage (VMP): 39.16V
Maximum Power Current (IMP): 16.99A

Electrical Characteristics with 10% rear side power gain
Total Equivalent Power in Watts: 732
Open Circuit Voltage (VOC): 44.98V
Short Circuit Current- Isc: 19.62A
Maximum Power Voltage (VMP): 39.16V
Maximum Power Current (IMP): 18.69A

Mechanical Data:
Solar Cells: Monocrystalline
Cell Configuration: 132 cells
Module dimensions: 2384*1303*35 mm
Weight: 38.5
Superstrate: High transmission, Low Iron, Tempered ARC Glass
Substrate: Tempered Glass
Frame: Anodized Aluminum Alloy
