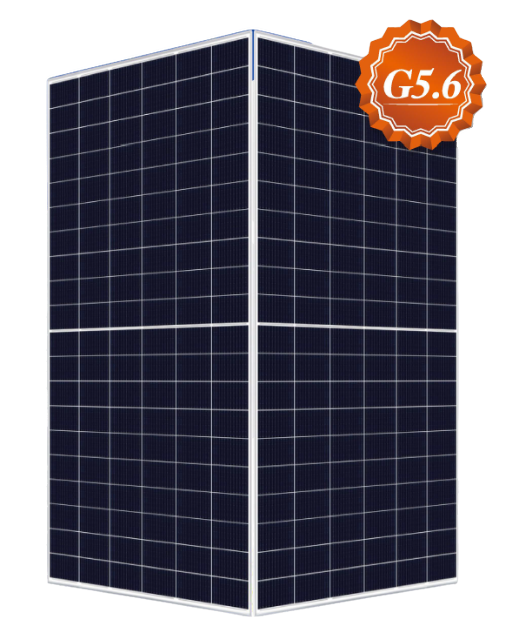

GeneralGold 590W Bifacial Solar Panel

Key Salient Features:
1. Global, Tier 1 bankable brand
2. Bifacial technology enables additional energy harvesting from the rear side (up to 30%)
3. Excellent low irradiance performance
4. Excellent PID resistance
5. Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

Electrical Data (STC):
Rated Power in Watts: 590
Open Circuit Voltage (VOC): 41.3V
Short Circuit Current- Isc: 18.16A
Maximum Power Voltage (VMP): 34.42V
Maximum Power Current (IMP): 17.15A

Electrical Characteristics with 10% rear side power gain
Total Equivalent Power in Watts: 649
Open Circuit Voltage (VOC): 41.3V
Short Circuit Current- Isc: 19.98A
Maximum Power Voltage (VMP): 34.42V
Maximum Power Current (IMP): 18.87A

Mechanical Data:
Solar Cells: Monocrystalline
Cell Configuration: 120 cells
Module dimensions: 2172*1303*35 mm
Weight: 35 Kg
Superstrate: High transmission, Low Iron, Tempered ARC Glass
Substrate: Tempered Glass
Frame: Anodized Aluminum Alloy
