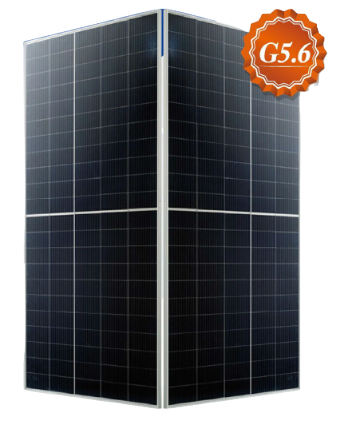

General Gold 540W Bifacial Solar Panel

Key Salient Features:
1. Global, Tier 1 bankable brand
2. Bifacial technology enables additional energy harvesting from the rear side (up to 30%)
3. Excellent low irradiance performance
4. Excellent PID resistance
5. Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

Electrical Data (STC):
Rated Power in Watts: 540
Open Circuit Voltage (VOC): 37.88V
Short Circuit Current- Isc: 18.13A
Maximum Power Voltage (VMP): 31.56V
Maximum Power Current (IMP): 17.12A

Electrical Characteristics with 10% rear side power gain
Total Equivalent Power in Watts: 594
Open Circuit Voltage (VOC): 37.88V
Short Circuit Current- Isc: 19.94A
Maximum Power Voltage (VMP): 31.56V
Maximum Power Current (IMP): 18.83A

Mechanical Data:
Solar Cells: Monocrystalline
Cell Configuration: 110 cells
Module dimensions: 2384*1096*30 mm
Weight: 33.5
Superstrate: High transmission, Low Iron, Tempered ARC Glass
Substrate: Tempered Glass
Frame: Anodized Aluminum Alloy
