General Gold

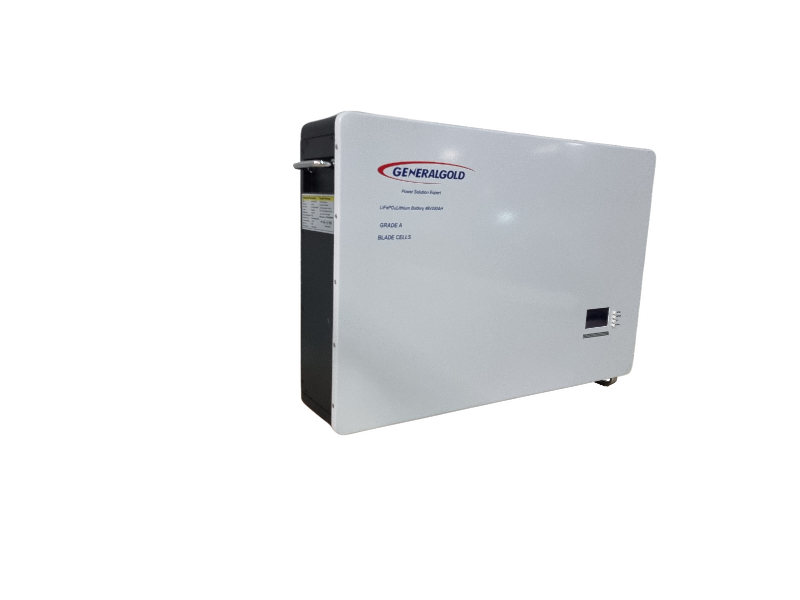

General Gold 48V 200Ah 10Kw Lithium Battery Blade Cells
General Gold 48V 200Ah 10Kw Lithium Battery Blade Cells
LiFePO4 Lithium Battery
Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times
longer float/calendar life than lead acid battery.
Lighter Weight: About 40% weight of a comparable lead acid battery, save
up to 60% in weight.
Quick Charge: Short charge time compared with lead acid battery.
Low Self-Discharge: Lower self-discharge compared with lead acid battery,
longer storage time without recharging.
Superior Safety: Multi-protection methods built inside to protect the battery
from overcharge, over discharge and short circuit situation.
High Efficient: Higher round-trip energy efficiency of the average (92%)
than lead acid battery 80% (discharge from 100% to 0% and back to 100%
charged).
Battery specification:
Battery Type: LifePO4 Grade A Cell
Energy: 10KHW
Capacity: 200AH
Rated Voltage: 51.2V
Working Voltage Range: 40-58.4V
Max Charge Current: 100A
Max Discharge Current: 100A
Standard Charge Current: 100A
Standard Discharge Current: 100A
DOD: 100% (0.2C)
Max Parallel Quantity: 15
Designed Life-Span: 6000 cycles
Operating Temperature: Charge 0_60C Discharge: -10_60C
Operation Humidity: 5-95%
Nominal Operation Altitude: <3000m
IP Rating: IP20
Installation Method: Wall-Mount
Communication: RS485, RS232, CAN
Certification: MSDS, UN38.3
Net Weight: 68.5 Kg
Dimensions (L*W*H): 678*451*152mm
