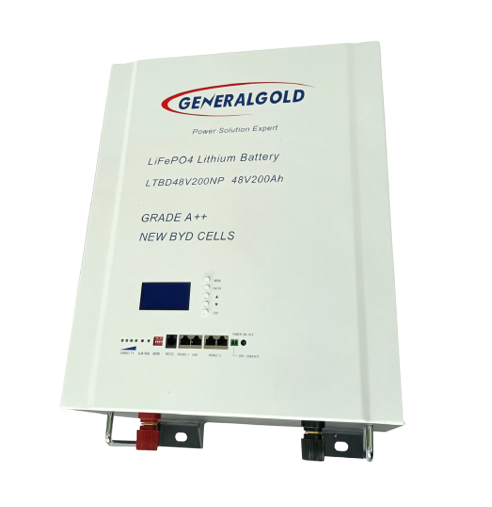

General Gold 48V 200Ah 10.2KW Lithium Battery Grade A New BYD Cells
General Gold 48V 200Ah 10.2KW Lithium Battery Grade A New BYD Cells
LiFePO4 Lithium Battery
Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times
longer float/calendar life than lead acid battery.
Lighter Weight: About 40% weight of a comparable lead acid battery, save
up to 60% in weight.
Quick Charge: Short charge time compared with lead acid battery.
Low Self-Discharge: Lower self-discharge compared with lead acid battery,
longer storage time without recharging.
Superior Safety: Multi-protection methods built inside to protect the battery
from overcharge, over discharge and short circuit situation.
High Efficient: Higher round-trip energy efficiency of the average (92%)
than lead acid battery 80% (discharge from 100% to 0% and back to 100%
charged).
Specifications:
Nominal voltage 48V
Nominal capacity 200Ah
Dimensions
Length 320±2mm (12.59inch)
Width 400±2mm (15.74inch)
Height 500±2mm (19.68inch)
Total height 580±2mm (22.83inch)
Approx. weight 82.0kg (180.78lbs)±2.5kg
Characteristics:
Electrical Parameters (25°C)
Rated Voltage 51.2V
Rated Capacity (C5) 200Ah@25°C
Energy 10240Wh
Months Self Discharge <3%
Charge Efficiency 99.5%@ 0.2C
Discharge Efficiency 96-99%@ 1C
Terminal Diameter M8
Internal resistance (Fully charged, 25°C) ≤80mΩ
Cycle life >3000 cycles @ 0.2C 100%D.O.D
Capacity affected by temperature
40°C 101%
25°C 100%
0°C 90%
-10°C 75%
Nominal operating temperature 25°C± 3°C (77°F± 5°F)
Operating temperature range
Discharge - 20°C~ 60°C (-4°F ~ 140°F)
Charge 0°C~ 45°C (32°F ~ 113°F)
Storage 0°C~ 40°C (32°F ~ 104°F)
Water Dust Resistance IP50
Charge Voltage 58.4V
Standard Charge Mode (25°C±2°C, <75%RH): 0.2CA Constant Current to 58.4V, then Constant Voltage 58.4V until the current drops to 0.02CA, before use, rest 30 minutes
Charge Current: 40A
Maximum Charge Current: 100A
Charge Cut off Voltage: 58.4V
Continuous Discharge Current: 100A
Maximum Pulse Current: 150A (<100ms)
Discharge Cut Off Voltage: 44.8V
Communicate Protocol (optional): RS232/RS485/CAN
SOC (optional): LED/Screen/PC Software
Application connection: 1 string 1 parallel
Mechanical
Cells: 16 Strings
Container: Metal
